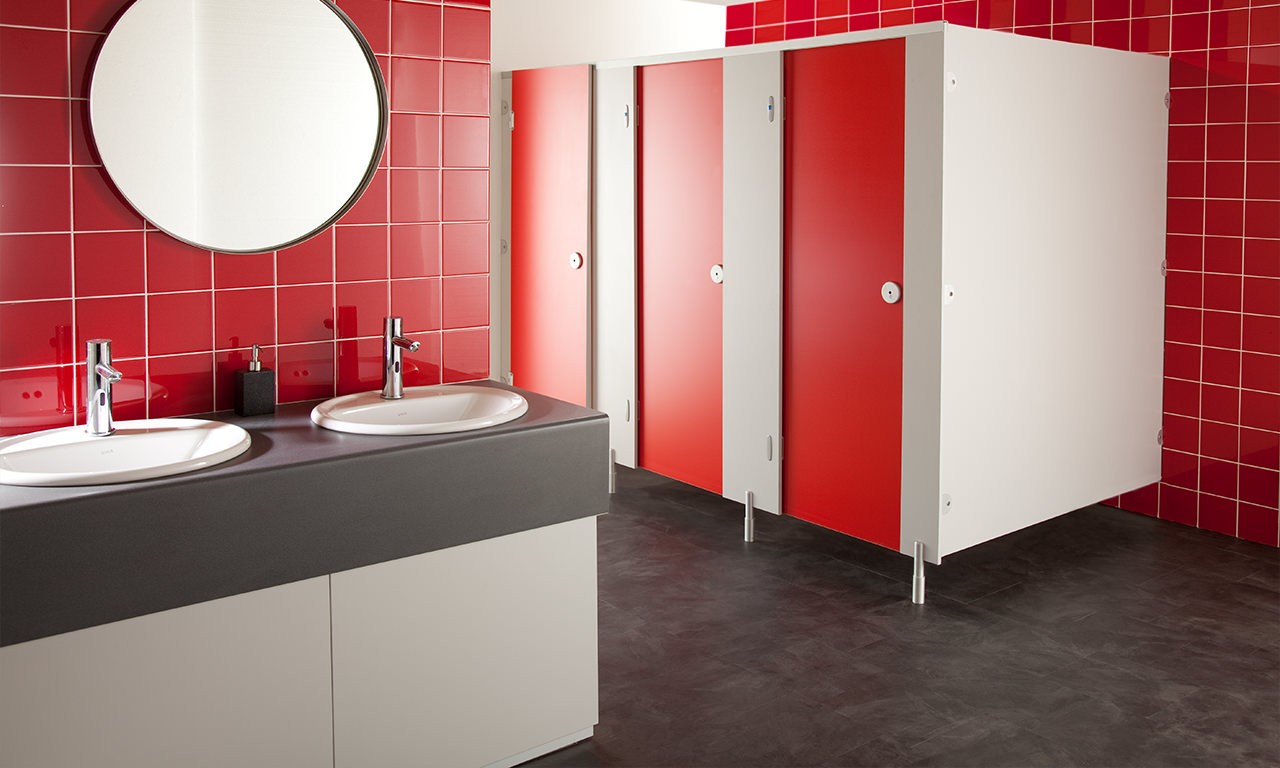

Malvern® Fast-Track WC Cubicles (Made-to-Measure)

Forgot to order your toilet cubicles?

But still want to have quality at the right size?

We can dispatch custom-made cubicles within 5 to 10 working days thanks to smart stocking and fast custom manufacturing.

The Malvern range is available in 8 different door colours, and is suitable for all dry environments.

Overview

  • Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC keep your panels pristine for longer
  • Rounded and sealed edges protect against moisture
  • Tamper-proof brackets and hinges can only be operated with an Allen or hex key, not with a coin or screwdriver
  • Dispatched within 5 to 10 working days

Specification

Price Scale: Low – Medium Partiton Depth: 1500mm (standard)
Availability: 5 – 10 working days Cubicle Height: 1955mm (standard)
Environment: Dry only Panels: 18mm MFC
Fittings: SAA Edging: Solid PVC

NBS Specification

This product is associated with:

Uniclass – Ss_25_12_60_60
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Questions about your WC cubicles?

Not sure whether Malvern is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 239kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 940kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 200kb

Download Image BoardDownload Image Board

Image Board
.pdf | 239kb

Malvern Cubicle Colours

Malvern Plain Grey

Plain Grey

Malvern White

White

Malvern Cream

Cream

Malvern Stone Grey

Stone Grey

Malvern Blue

Blue (Doors Only)

Dusty Blue

Misty Blue (Doors Only)

Malvern Red Swatch

Red (Doors Only)

Malvern Yellow swatch

Yellow (Doors Only)

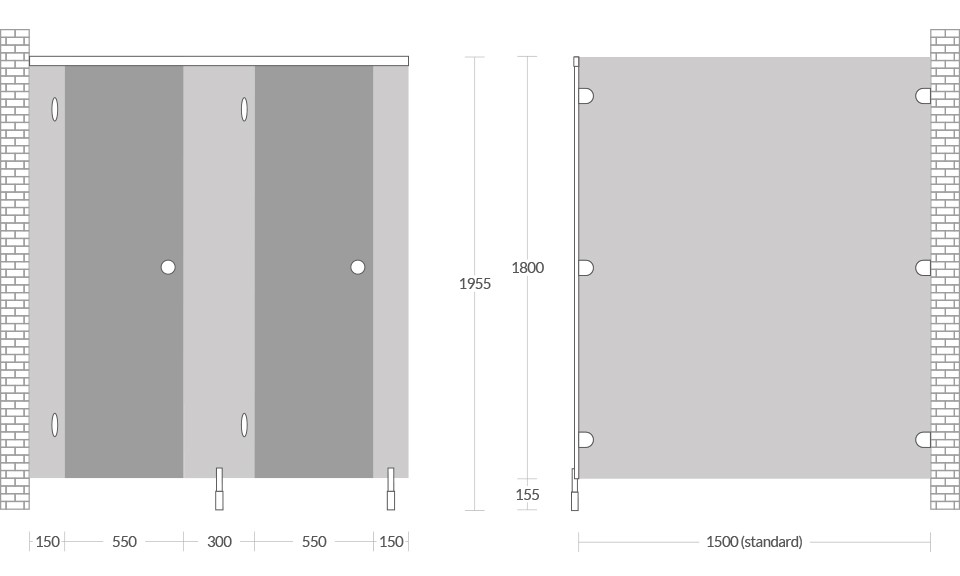

Standard Dimensions

Cubicle dimensions Malvern

Overall Height: 1955mm
Floor Clearance: 155mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Malvern Cubicle Fittings

Cubicle Leg Malvern

Cubicle Leg

Cubicle latch Malvern

Cubicle Latch

Indicator face Malvern

Indicator Face

Cubicle safety hinge Malvern

Heavy-Duty Cubicle Hinge

Panel Material

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.
