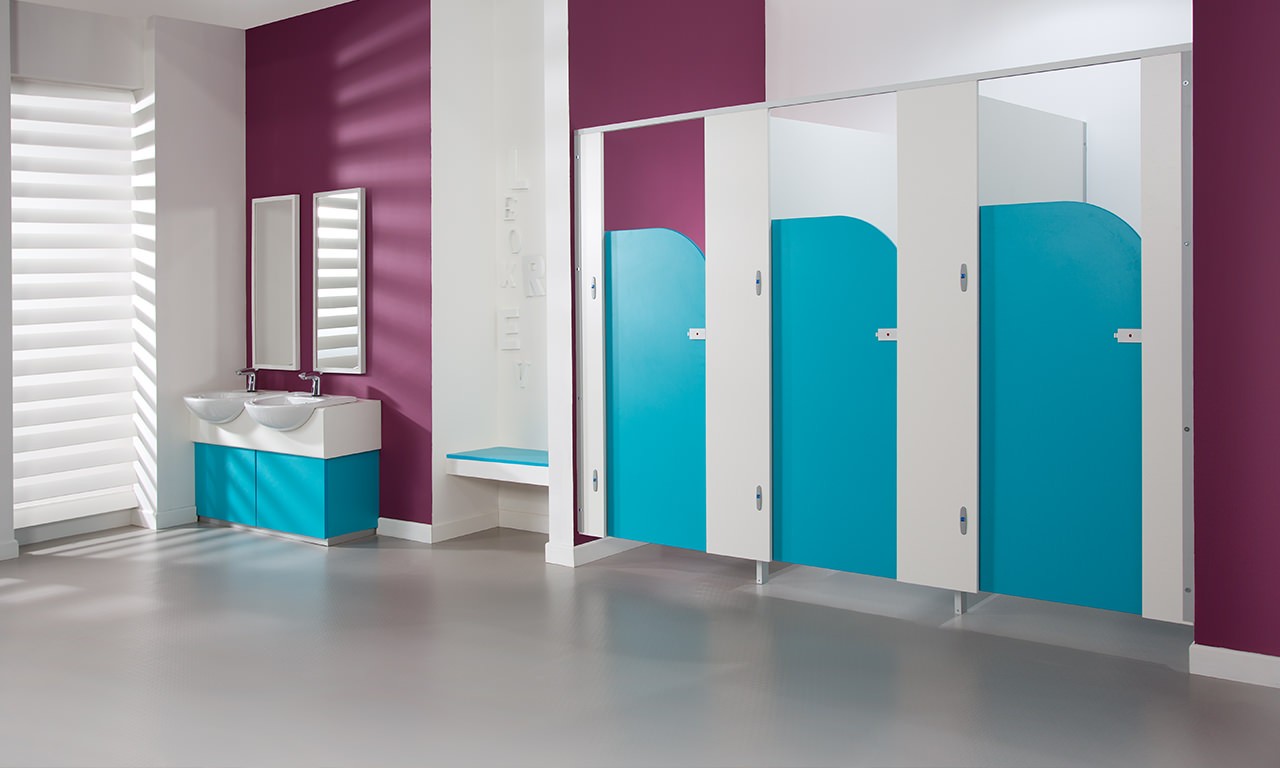

Pendle Junior® Fast Delivery School Cubicles

Do you need your toilet cubicles quickly?

Our Pendle Junior range can be dispatched within 3-5 working days, so you can finish your school project in time. These cubicles come in standard sizes with a colourful curved door, and can be cut to your requirements on site.

These toilet cubicles are designed for nursery / junior school washrooms.

Specifier Info

Overview

  • Full-height aluminium channels for extra-strong hinges – adjustable to any ceiling height
  • Melamine Faced Chipboard (MFC) panels with an extra thick coating of 2mm PVC to keep your panels pristine for longer
  • Brushed metal cubicle legs, latches, and indicator faces
  • Full installation guide for easy on-site assembly

  • Usually dispatched within 3-5 working days

Specification

Price Scale: Low-Medium Partiton Depth: Supplied at 1800mm
Availability: 3 to 5 working days to dispatch Cubicle Height: 1950mm
Environment: Dry Only Panels: 18mm MFC
Fittings: SAA / PVC channels Edging: Solid PVC

How to Order Your Pendle Junior Toilet Cubicles

1. Choose between Blueberry or Dragon Fruit doors with White partitions

2. Decide how many door packs (box A) and partition packs (box B) you require (see configurations diagram below)

3. Order online at our sister site Plumbware.co.uk

Any questions? Call our team for advice on (01924) 457600

Order Pendle Junior Cubicles Online

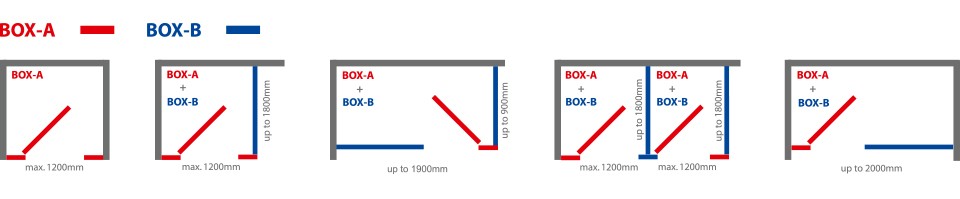

Configurations

The diagram below shows some typical configurations for Pendle Junior washroom cubicles.
Door Pack (Box-A) and Partition Pack (Box-B).

Pendle toilet cubicle configurations

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 158kb

Download Specification SheetDownload Specification Sheet

Specification Sheet
.pdf | 345kb

Download Specification SheetDownload Specification Sheet

Image Board
.pdf | 250kb

Download Specification SheetDownload Specification Sheet

Pendle Brochure
.pdf | 952kb

Download BrochureDownload Brochure

Cubicle Centre Brochure
.pdf | 7.2mb

Pendle Junior Colours

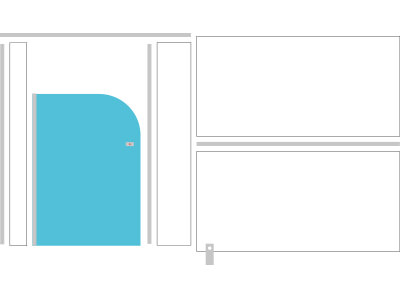

Blueberry

Blueberry

Pendle Marshmallow

Marshmallow Pink

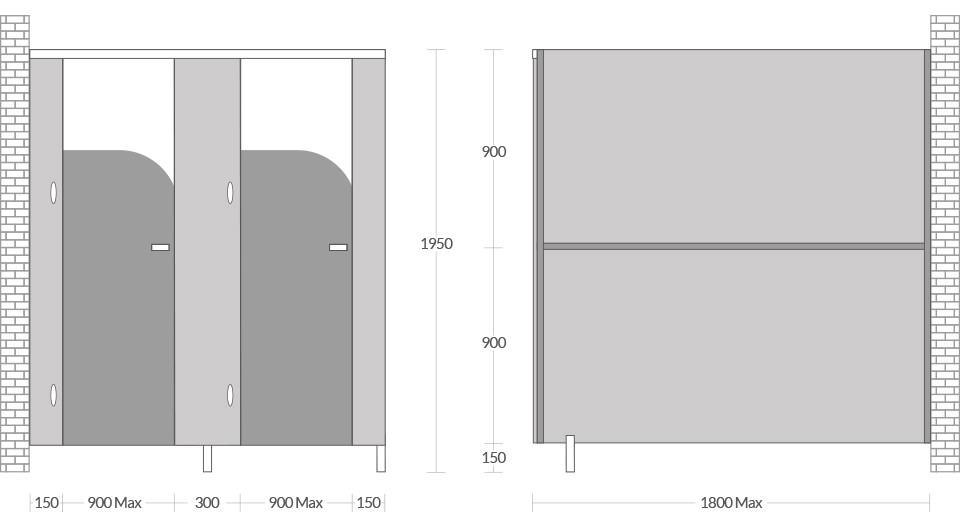

Standard Dimensions

Pendle Junior dimensions

Overall Height: 1950mm
Floor Clearance: 150mm
Door Width: 950mm (max)
Door Opening: 900mm (max)
Partition Height: 1800mm
Partition Depth: 1800mm (max)
Start/End Fascia: 150mm
Middle Fascia 300mm

Pendle Junior Cubicle Fittings

Education WC cubicle leg

Cubicle Leg

school cubicle 'H' section

Partition ‘H’ Section

School toilet indicator bolt

Indicator Face

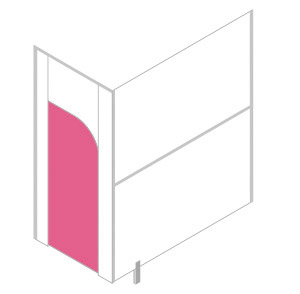

Curved toilet cubicle door

Curved Cubicle Door

Panel Material

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

Order Pendle Junior toilet cubicles from Plumbware.co.uk
